Advanced Apex Locator

3 Color LCD
1. When the file is inserted into the root canal, a bar graph displays its progress, with the bar’s position reflecting the position of the file as it descends.

2. As the tip of the file approaches the root apex (0.5~) the bar graph turns blue, and the audio alert sound increases in pitch and speeds up in tempo to notify the user that the file is entering the Zone of Precision.

3. When the tip of the file reaches the minor apical diameter, the bar graph display reads 0.0, and the alert sound changes to a continuous tone.

4. If the tip of the file goes past the apex, the unit issues a fast and continuous alert sound while the word APEX appears in red and OA (Over Apex) is displayed in blue.

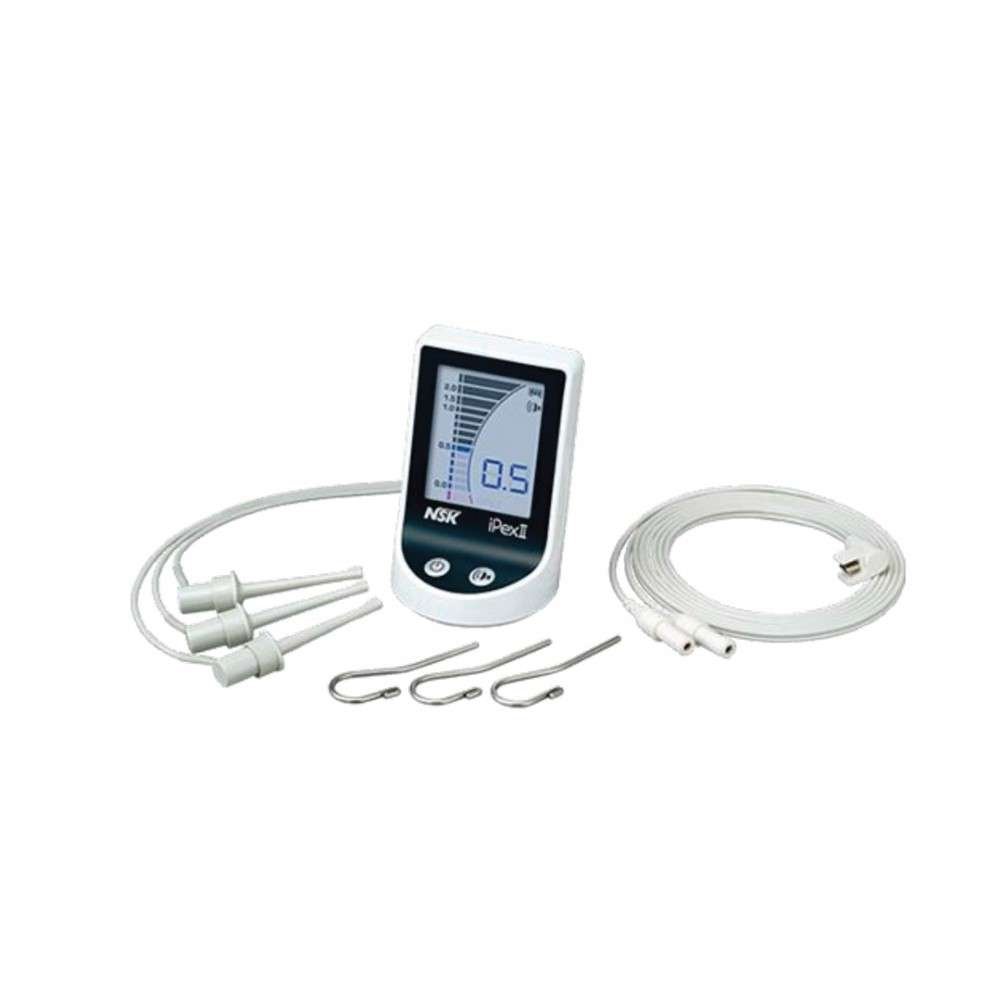

Includes:

- Control Unit

- iPexII Probe (1.8 m)

- iPexII File Clip (3 pcs.)

- Lip Hook (3 pcs.)

- AAA Manganese Dry Batteries (3 pcs.)

- iPexII Tester

Specifications

Power Supply : For 1.5 V AAA (LR03 or R03) Batteries

Continuous Use : Appx. 60 Hours

Dimensions : W 60 x D 60 x H 86 mm

Weight : 76 g (Unit without Batteries)
